Vector Files for Engraving: Complete Guide for Laser & CNC Engraving
Whether you're engraving jewelry, trophies, signage, or custom products, vector files are essential for professional results. This comprehensive guide explains everything you need to know about using vector files for engraving.
Why Vector Files Are Essential for Engraving
Engraving machines - whether laser engravers, CNC routers, or rotary engravers - require precise path information to know where to cut, etch, or mark. Vector files provide this exact information through mathematical paths, making them the industry standard for all types of engraving work.
Unlike raster images (JPG, PNG) which are made of pixels, vector files (SVG, AI, DXF, EPS) contain actual path data that engraving machines can follow. This results in crisp, clean engravings at any size.
Types of Engraving & Vector Requirements
Laser Engraving

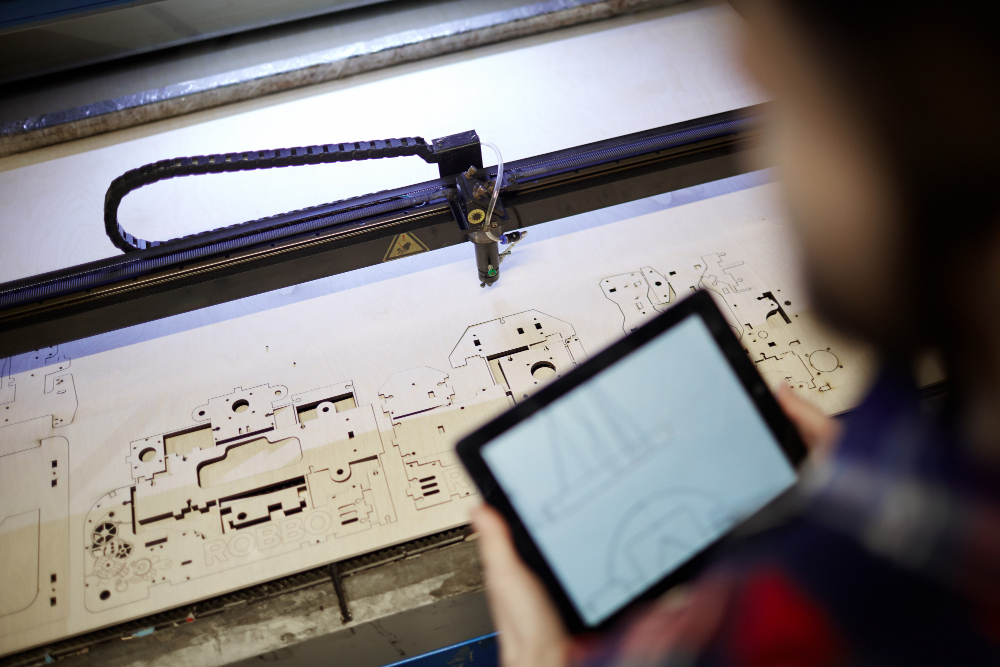

Laser engravers use focused laser beams to etch designs onto materials like wood, acrylic, metal, leather, and glass.
Best Vector Formats:
- SVG - Most common, widely supported
- AI - Adobe Illustrator native format
- DXF - AutoCAD format, excellent for precision
- PDF - Universal, but ensure paths are preserved
Key Requirements:
- Clean, continuous paths
- No raster images embedded (or separate raster/vector layers)
- Proper line weights (typically 0.001" or "hairline")
- Outlines/strokes for cutting, fills for engraving
Pro Tip: Laser engravers can handle both vector cutting (following paths) and raster engraving (filling areas). Provide both in your vector file for maximum flexibility.
CNC Engraving
CNC (Computer Numerical Control) routers physically cut or engrave materials using rotating bits. Common for wood, metal, and plastic.
Best Vector Formats:
- DXF - Industry standard for CNC
- DWG - AutoCAD native format
- AI - Can be imported into CAM software
- SVG - Supported by modern CNC software
Key Requirements:
- Closed paths for pocket cuts
- Tool path considerations (inside vs outside cuts)
- Proper scaling and units (inches or millimeters)
- Consideration for bit diameter and corner radius
Pro Tip: CNC machines require "offset" calculations based on bit size. Provide files with clean, simple paths to avoid CAM software errors.
Rotary Engraving
Rotary engravers use diamond-tipped or carbide cutters to engrave into metal, plastic, and other materials. Common for trophies, plaques, and industrial marking.
Best Vector Formats:
- AI - Preferred by most engraving software
- EPS - Universal compatibility
- DXF - For technical precision
- PLT - HPGL plotter format (older machines)
Key Requirements:
- Single-line fonts (no filled outlines)
- Converted text to paths/outlines
- Consideration for stroke order
- Appropriate line weights for material
Pro Tip: Rotary engraving works best with single-line fonts. Use specialized engraving fonts or have your designer create single-stroke paths.
Common Engraving Applications
Products That Require Vector Files:
- Trophies & Awards - Names, logos, dates
- Jewelry - Custom engravings on rings, bracelets, pendants
- Signage - Building directories, ADA signs, wayfinding
- Custom Gifts - Engraved cutting boards, coasters, frames
- Industrial Marking - Part numbers, serial numbers, barcodes
- Promotional Products - Branded pens, USB drives, keychains
- Name Plates & Tags - Employee badges, pet tags, equipment labels
- Glass Etching - Awards, decorative panels, bottles
Materials Commonly Engraved:
- Metals - Aluminum, brass, stainless steel, copper
- Wood - Hardwoods, plywood, bamboo, MDF
- Acrylic - Clear, colored, frosted plastics
- Leather - Genuine and synthetic leather goods
- Glass - Bottles, awards, decorative items
- Stone - Granite, marble, slate tiles
- Coated Metals - Anodized aluminum, powder-coated surfaces
- Rubber & Foam - Stamps, gaskets, custom parts
Preparing Vector Files for Engraving
Best Practices
- 1
Convert All Text to Outlines/Paths
This ensures the text displays correctly even if the engraver doesn't have your fonts installed. In Adobe Illustrator: Type → Create Outlines.
- 2
Use Proper Line Weights
Laser cutting typically requires 0.001" or "hairline" strokes. Engraving can use fills. Consult your engraver for specifics.
- 3
Ensure Closed Paths
Open paths can cause unexpected results. Check all paths are properly closed, especially for filled shapes.
- 4
Set Correct Dimensions
Create your design at actual size with proper units (inches or mm). A 2" logo should be 2" in your vector file.
- 5
Simplify Complex Paths
Too many anchor points slow down engraving. Simplify paths while maintaining quality (Object → Path → Simplify in Illustrator).
- 6
Use Black for Cutting, Gray for Engraving
Many laser engravers use color to distinguish between cutting (black/red) and engraving (other colors). Check with your service provider.
Common Mistakes to Avoid
- ❌ Using raster images (JPG, PNG) instead of true vectors
- ❌ Not converting text to outlines (fonts won't match)
- ❌ Including hidden layers or objects
- ❌ Using RGB color mode instead of CMYK or spot colors
- ❌ Overlapping paths that cause double-cutting
- ❌ Including strokes on shapes meant to be filled
- ❌ Forgetting to account for material thickness
- ❌ Details too small for the material/machine capability
Need Your Logo Converted for Engraving?
Many businesses have their logo only as a raster image (JPG or PNG from their website). These files won't work for professional engraving. You need a proper vector file.
Why Professional Vectorization Matters for Engraving:
Get Your Logo Engraving-Ready
VectorGurus specializes in converting logos to engraving-ready vector files. We hand-trace your logo to create clean, professional files that work perfectly with any engraving machine. With 900+ satisfied customers and 24-hour delivery, we're your trusted partner for vector conversion.
Conclusion
Vector files are absolutely essential for professional engraving work. Whether you're working with laser engravers, CNC machines, or rotary engravers, having properly prepared vector files ensures clean, precise results every time.
If you only have a raster version of your logo or design, invest in professional vector conversion. The cost is minimal compared to the frustration of rejected files, poor engraving quality, or having to recreate your design from scratch.
VectorGurus can convert your logo or design to engraving-ready vector files in 24-48 hours, complete with all necessary formats and optimizations for engraving applications.
